JOBSITE 6 (Administrasi Infrastruktur Jaringan) By: Tino Blog No comments

TOPOLOGI JOBSITE 6

Pembagian IP Address menggunakan metode VLSM

Vlan 203 Vlan 96 Vlan 173 Vlan 137 Network 192.178.166.0 192.178.166.32 192.178.166.64 192.178.166.80 Host 192.178.166.1 - 192.178.166.30 192.178.166.33 - 192.178.166.62 192.178.166.63 - 192.178.166.78 192.178.166.81 - 192.178.166.86 Broadcast 192.178.166.31 192.178.166.63 192.178.166.79 192.178.166.87

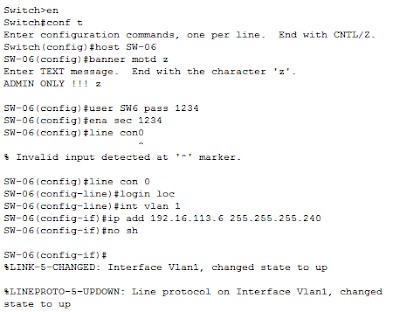

Konfigurasi remote SSH

Switch 1

Switch 2

Switch 3

Switch 4

Switch 5

Switch  6

Switch 7

Konfigurasi VLAN ID
Switch 1

Switch 2

Switch 3

Switch 4

Switch 5

Switch 6

Switch 7

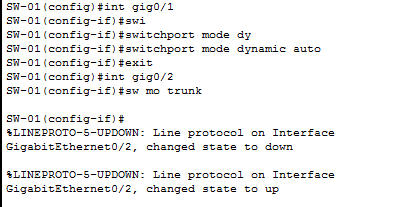

Konfiguras Dynamic Trunking Protocol (DTP)

Switch 1

Switch 2

Switch 3

Switch 4

Switch 5

Switch 6

Switch 7

Konfigurasi Allowed VLAN

Switch 1

Switch 2

Switch 3

Switch 4

Switch 5

Switch 6

Switch 7

Konfigurasi VTP (Virtual Trunking Protocol)
Switch 1

Switch 2

Switch 3

Switch 4

Switch 5

Switch 6

Switch 7

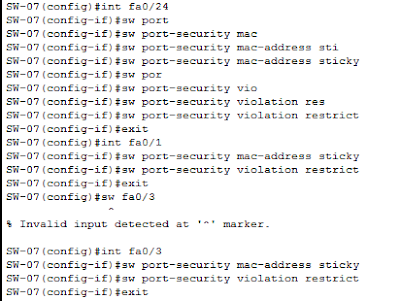

Konfigurasi Port Security
Switch 1

Switch 2

Switch 3

Switch 4

Switch 5

Switch 6

Switch 7

Konfigurasi Per-VLAN Spanning tree
Switch 1

Switch 2

Switch 3

Switch 4

Switch 5

Switch 6

Switch 7

Backup konfigurasi
Switch 1

Switch 2

Switch 3

Switch 4

Switch 5

Switch 6

Switch 7

Hasil backup

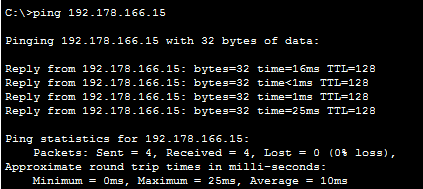

Hasil Ping antar PC
PC-9 ke PC-41

PC-18 ke PC-31
